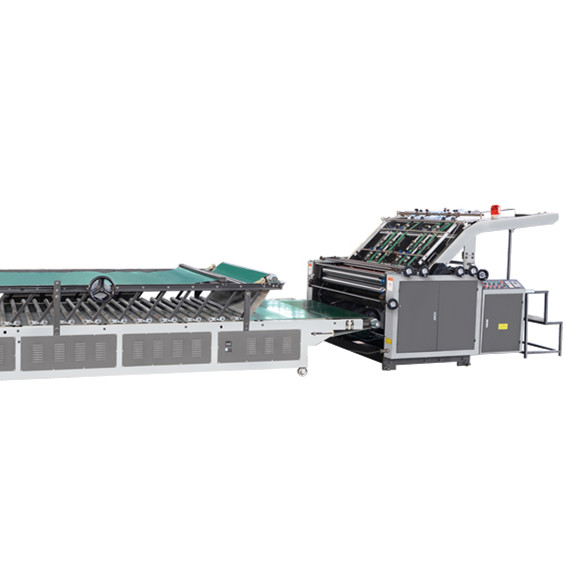

Professional Flute Laminator Machine /Semi automatic Flute Laminating Machine

Brand Name : QH

Model Number : 1300/1450/1600

Certification : CE ISO

Place of Origin : hebei

MOQ : 1 set

Price : USD+8000-20000+per set

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 45 days

Packaging Details : standard

speed : 45 m/min

warranty : 1 year

voltage : 220/380/440V

application : corrugated paperboard

power : 7 kw

weight : 4 T

Contact Now

QH-C high quality semi-automatic flute-laminating machine / flute laminating machine

Main chracteristics:
Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam.
Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional).
Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet.
Bottom sheet can be paperboard more than 350gsm,A/B/C/D/E/F corrugated cardboard.
Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.
Using hight-precision plastic block device,sace glue.

Main technical parameters:

Model	QH-1300B	QH-1450B	QH-1600B
Max sheet size	1300×1300mm	1450×1300mm	1600×1300mm
Min sheet size	320×450mm	320×450mm	320×450mm
Total power	7kw	7kw	7kw
Speed	0-90m/min	0-90m/min	0-90m/min
Weight	3.5T	4T	4.5T
Overall Dimensions	8800×2200×1700mm	8800×2350×1700mm	8800×2500×1700mm

Professional Flute Laminator Machine /Semi automatic Flute Laminating Machine

Product Tags:

board lamination machine

paper sheet lamination machine

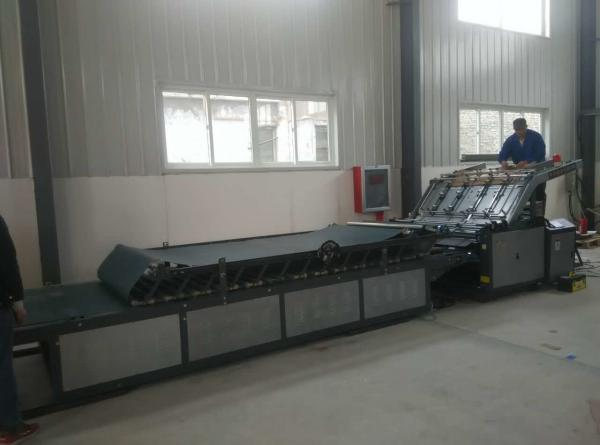

Professional Flute Laminator Machine /Semi automatic Flute Laminating Machine Images
