Corrugated Cardboard Making Machine 1600mm Two Layer Stable Operation

Brand Name : QH

Model Number : 1600

Certification : CE ISO

Place of Origin : Hebei

MOQ : 1set

Price : USD+110000-150000+1 SET

Payment Terms : L/C, T/T

Supply Ability : 20 sets per year

Delivery Time : 90 days

Packaging Details : standard

speed : 120-150 m/min

warranty : 1 year

pack : film

heating : steam heating

flute type : A . B .C. E. F

name : corrugated cardboard production line

Contact Now

High Speed 2 Layer Corrugated Cardboard Making Machine 1600mm

Model

Name

QTY

Feature

HB-I

Hydraulic Mill Roll Stand

( with trolly and track)

Main shaft diameter is 242mm,doublecurve heavy rocker arm, tooth clip,mulitpoint brake,hydraulic lift,left and right translation.

Guide rail length is 6000 mm, the car uses 10 mm plate welding

SP-1- 600

Pre-heater

The roller ￠600 mm, including the pressure vessel certificate; electric adjustment angle; angle can be adjusted within the range of 360 °

320CR

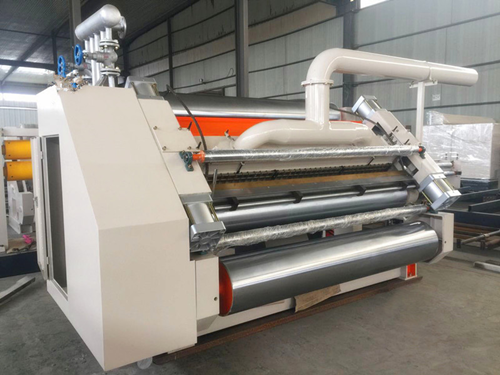

Single Facer

Corrugated diameter is 320mm, 48CrMo high quality alloy steel; Adopt independent gearbox, universal joint drive structure; Airbag ballast structure, PLC automatic control glue; Steam heating

OHB

Conveying Bridge

Main girer is 200mm box iron,independent frequency conversion motor drive paper transport, adsorption tension. Electric correction.

NCCS

Cutter&Stacker for 2layer

NC helical knife, NC slitting, basket down stacker

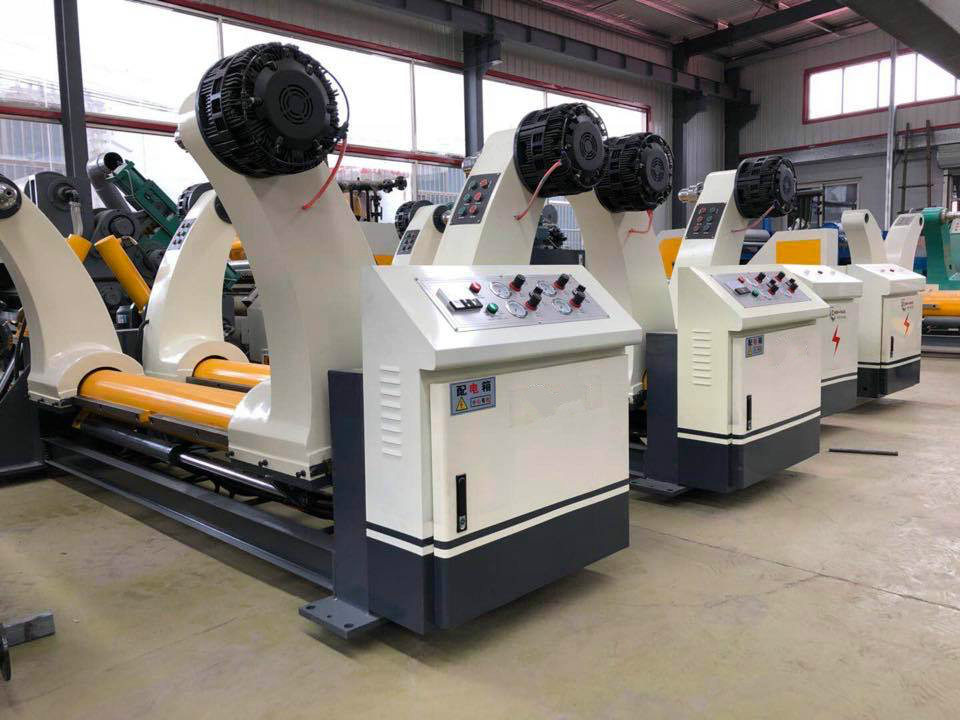

HB-I Hydraulic Mill Roll Stand

Kraft paper feeding ground rack & trolly
