380V Corrugated Paper Making Machine High Output Three Press For Making Paper Roll

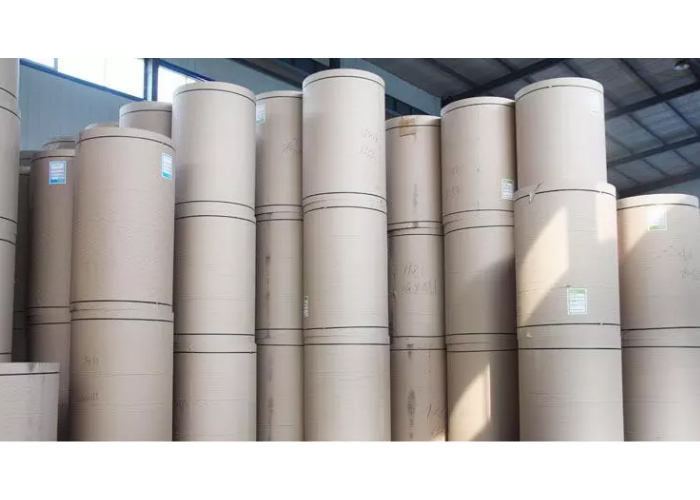

High output corrugated paper making machine to make paper roll

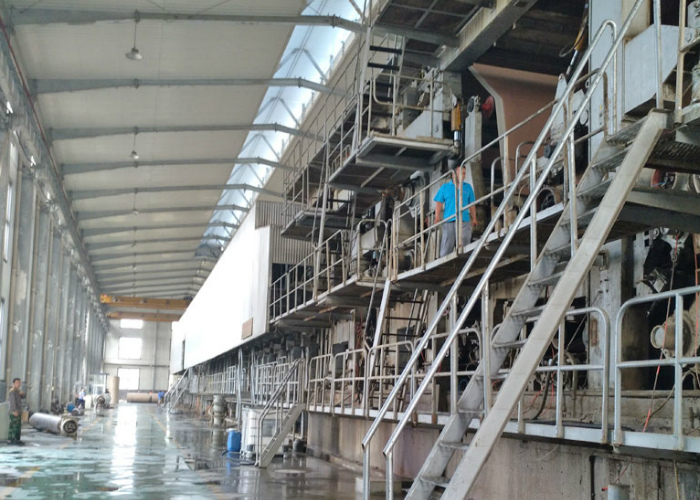

Corrugated paper making machine introduction

The corrugated paper width 4600mm, mainly used for copying low base weight high-strength corrugated base paper. Paper machine is divided into the following parts: headbox, long wire, press section, front dryer section, skewed surface sizing machine, back dryer section, coiling.

Corrugated paper making machine details

1. Headbox:Air-cushioned headbox, by controlling the headbox gas pressure to control and stabilize the sizing pressure head of wire pulp.

2. Wire section:Single long wire, the main components: chest roll, forming plate, dehydration board, vacuum box, vacuum underlying rollers, drive roll, guide roller and rack.

3. Press section

Divided into a press, two press, three press. A K-type composite press with a vacuum suction roller, K-type composite press is equipped with a coated metal roller, a vacuum press roll, a stone roller, and with the next felt; two press, three press for the big roll diameter press, each with two coated metal roller, and with, under the felt. A press, two presses, three presses are equipped with a felt roller and felt section box. A press, two press, three press pressing method for the corrugated gas tire pressure

4. Drying part front dryer section24 Φ1800 dryer cylinder, 8 +8 +8group drive, with semi-enclosed hood; Back dryer section is 12Φ1800 dryer, 6+6 group drive, with semi-enclosed hood.
